LDR Split Industrial Small Electric Steam Boiler For Sterilization Equipment

  • 1
  • 2

Brand Name : WILFORD

Model Number : LDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Export wooden Packing

Rated evaporation : 200-500kg/h

Rated working pressure : 7/10/8bar

Main steam valve diameter : 25-50DN

Safety valve diameter : 25-40DN

Water inlet diameter : 20-25DN

Blowoff valve diameter : 25-40DN

Contact Now

LDR Split Industrial Mini Electric Steam Boiler For Sterilization Equipment

Product introduction

  • All electrical components with CE and UL marks --ensure safety and long life service.

  • Quickly start and stop, big operation load adjusting range,easily handling.

  • Each heating element use a concentrated beam flange connection, independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life.

  • Flexible working methods, could set either manual or automatic mode.

  • Unique power switching function,could be regulated based on actual demand of steam power, make same usage time/frequency ,improve equipment service life.

  • When electric boiler heating element in a group has problem, could immediate stop operation the destroyed heating group and cut off power supply.

  • Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation.


Parameter

Type LDR0.15 LDR0.2 LDR0.3 LDR0.5
Project Unit
Rated evaporation t/h 0.15 0.2 0.3 0.5
Rated working pressure MPa 0.7/1.0 0.7/1.0 0.7/1.0 0.8/1.0
Staturated steam temperature ℃ 170/193 170/193 170/193 184/193
Input Power KW 108 144 216 360
Input current A 162 216 324 540
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 18×6 18×8/24×6 27×8 36×10
a Main steam valve diameter DN 25 32 32 50
b Safety valve diameter DN 25 25 25 40
c Inlet diamater DN 20 20 20 25
d Blowoff Valve diameter DN 25 25 25 40
Overall size L mm 1100 1280/1 150 1300 1580
W mm 950 1150/950 1200 1350
H mm 2050 2100/2050 2200 2600
A mm - - 1200 1200
B mm - - 500 500
C mm - - 1800 1800
Weight kg 330/400 450/530 680/740 980/1080

Advantage

1 . LDR0.3 and above split structure


2 . Independent boiler control cabinet


3 . The heating element is connected by a concentrated beam type flange


4 . Thermal efficiency is nearly 99%


5 . Electrical components have long service life


6 . Easy to maintain and install

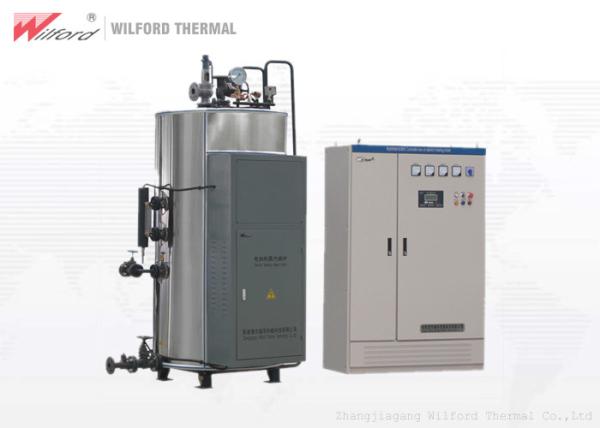

Product picture

LDR Split Industrial Small Electric Steam Boiler For Sterilization Equipment

Contact us

  • We are professional in exporting and importing oil gas electric steam boiler.

  • We provide good quality and competitive price.

  • Please contact me 24h freely ,I am delighted to serve you .

  • welcome to visit our website and our factory in china.

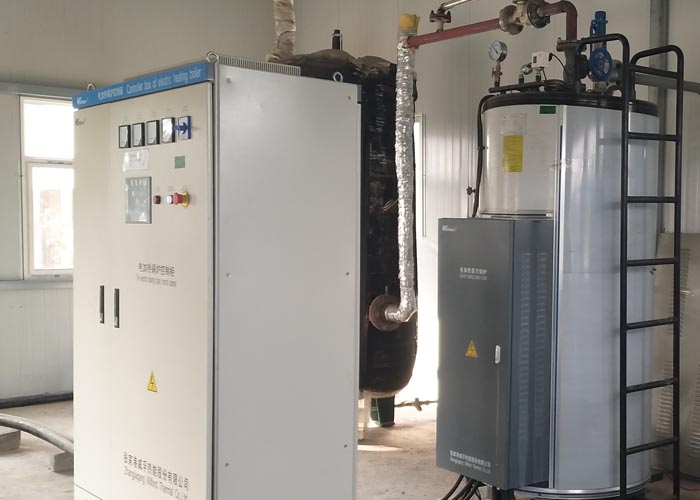

Project case diagram

LDR Split Industrial Small Electric Steam Boiler For Sterilization Equipment
