Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine

Name: Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine
Brand: WILFORD
Price: 1 USD

Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine Manufactures

Brand Name : WILFORD

Model Number : LDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Packing in wooden box

Rated evaporation : 0.15-0.5T/h

Rated working pressure : 0.7/1.0/0.8Mpa

Input power : 108-360KW

Input current : 162-540A

Power *Group : Different

Weight : 330/400-980/1080T

Contact Now

Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine

Product introduction

1 . Because the heating component is completely immersed in water and perfectly insulated, vertical design can bring about very high efficiency of electric boiler and reduce the radiation to minimum.

2 . The precise calculation can make the boiler quickly and efficiently reach working pressure.

3 . The use of low surface heat load heating components make it not easy to melt or soften.

4 . each component goes through hydraulic pressure and voltage resistance test; boiler can work after being connected to power and water.

5 . With nearly 100% thermal efficiency, it is quiet, clean and in line with environmental requirements.

Parameter

Type			LDR0.15	LDR0.2	LDR0.3	LDR0.5
Project		Unit	LDR0.15	LDR0.2	LDR0.3	LDR0.5
Rated evaporation		t/h	0.15	0.2	0.3	0.5
Rated working pressure		MPa	0.7/1.0	0.7/1.0	0.7/1.0	0.8/1.0
Staturated steam temperature		℃	170/193	170/193	170/193	184/193
Input Power		KW	108	144	216	360
Input current		A	162	216	324	540
Rated pressure		V	3N AC 50Hz 380V
Power×Group		KW×P	18×6	18×8/24×6	27×8	36×10
a Main steam valve diameter		DN	25	32	32	50
b Safety valve diameter		DN	25	25	25	40
c Inlet diamater		DN	20	20	20	25
d Blowoff Valve diameter		DN	25	25	25	40
Overall size	L	mm	1100	1280/1150	1300	1580
	W	mm	950	1150/950	1200	1350
	H	mm	2050	2100/2050	2200	2600
	A	mm	-	-	1200	1200
	B	mm	-	-	500	500
	C	mm	-	-	1800	1800
Weight		kg	330/400	450/530	680/740	980/1080

Feature

Electric heating steam boiler

Electrical components have CE and UL certification marks

Start and stop fast

Large operating load range

Simple structure and long service life

Easy to install

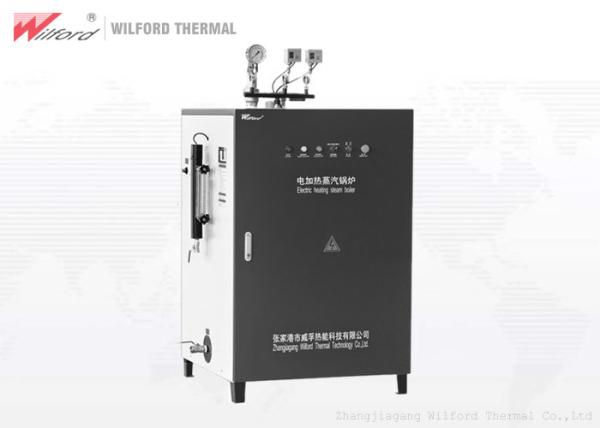

Product picture

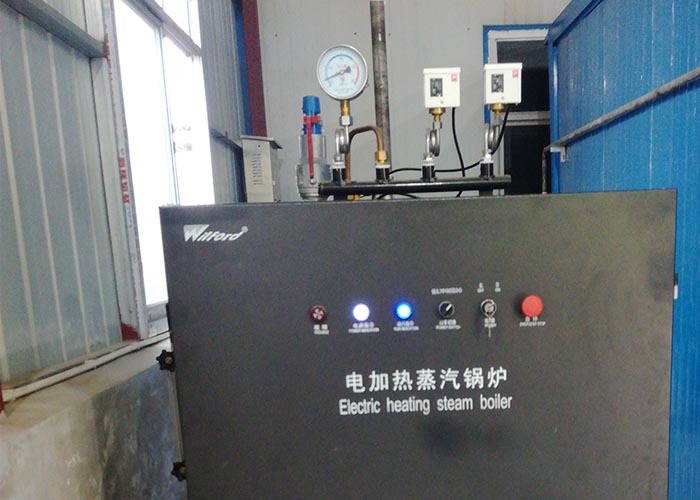

Project case diagram
